Download 30 day free trial of Sewer+.

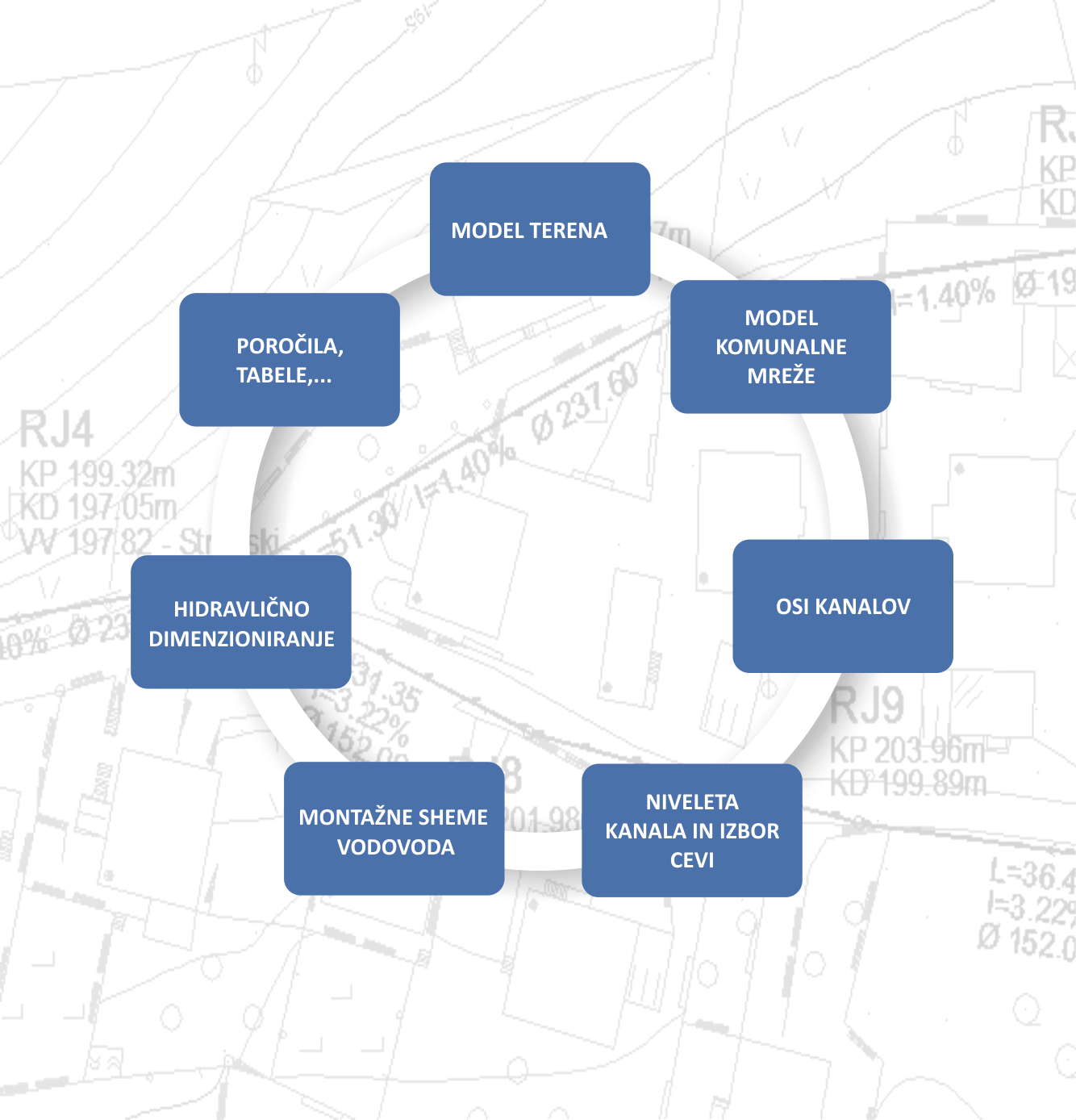

The capability to design various types of networks: storm and waste water pipelines, drinking water lines, gas and district heating lines, electric and telecommunication subterrain networks. Sewer+ allows you to combine all of them in one project.
The integral parts of Sewer+ - automatic calculation of pipeline crossings and the automatic display of pipeline crossings in profiles make your project transparent and easy to handle.

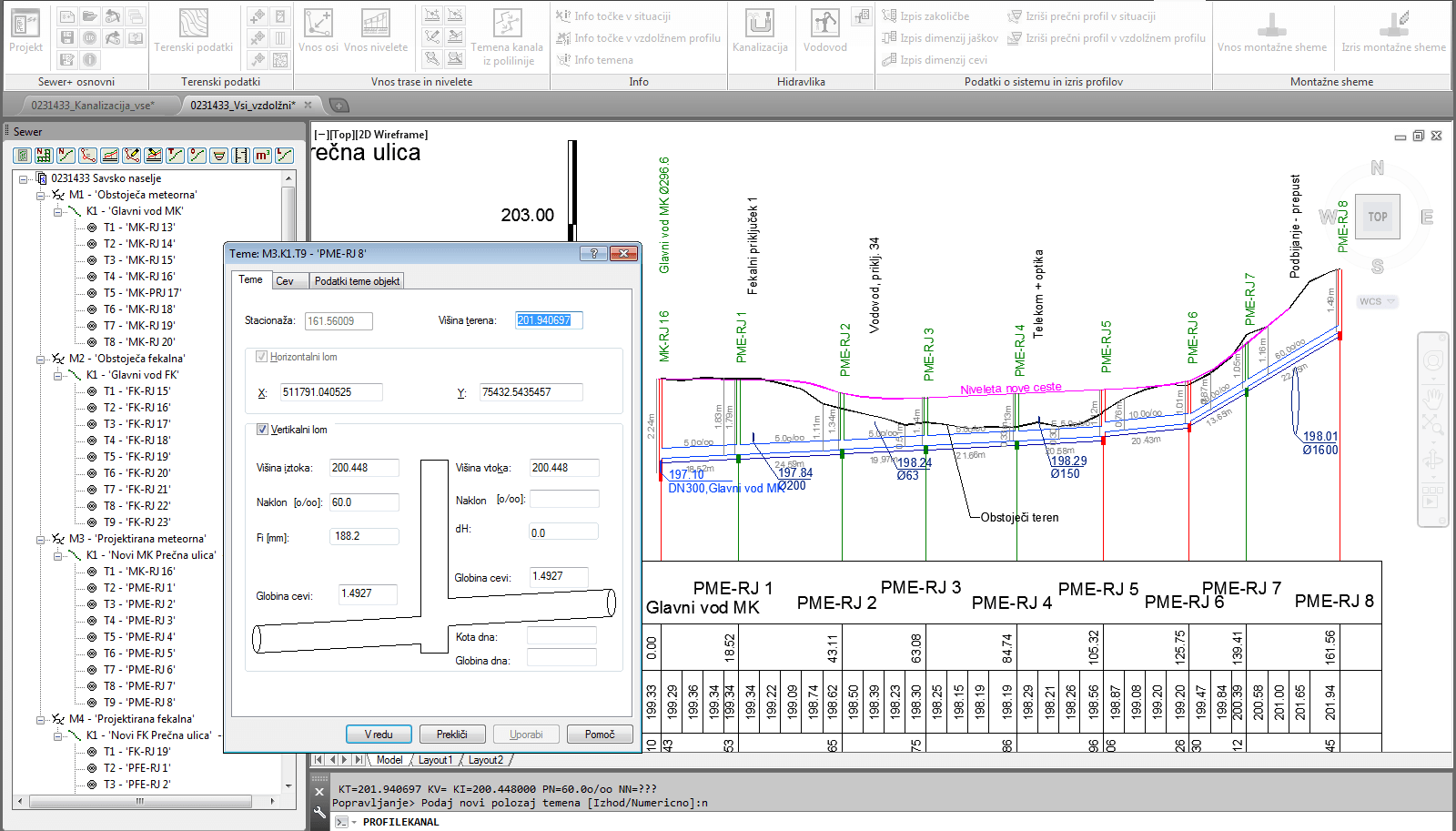

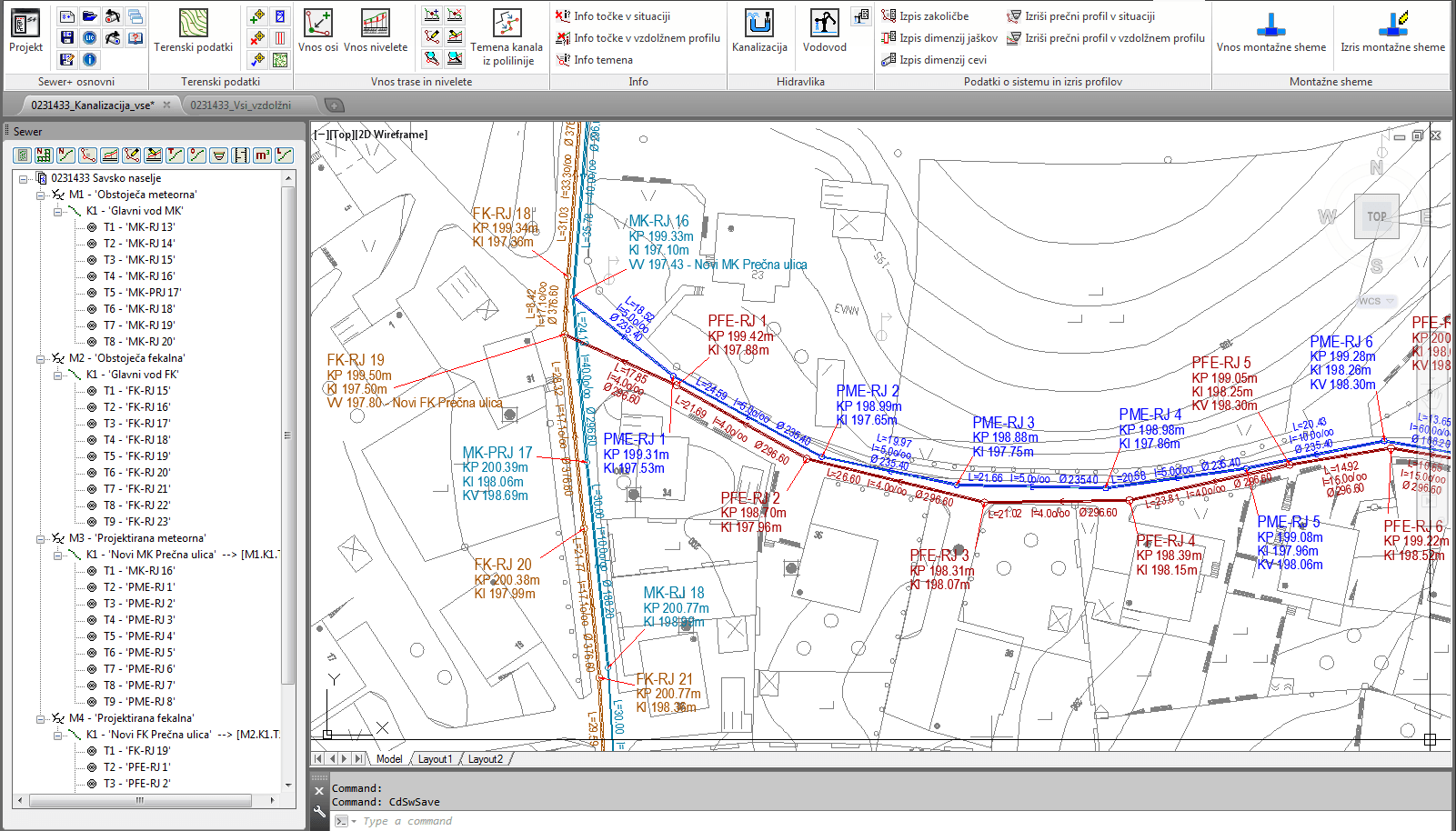

Pipeline alignment design: with interactive insertion of pipeline nodes, with importing from CAD polylines, or even directly from Excel spreadsheet.
Changes of alignment are possible at any time. Adding, deleting, inserting, changing attributes - all changes are automatically populated trougout the project.

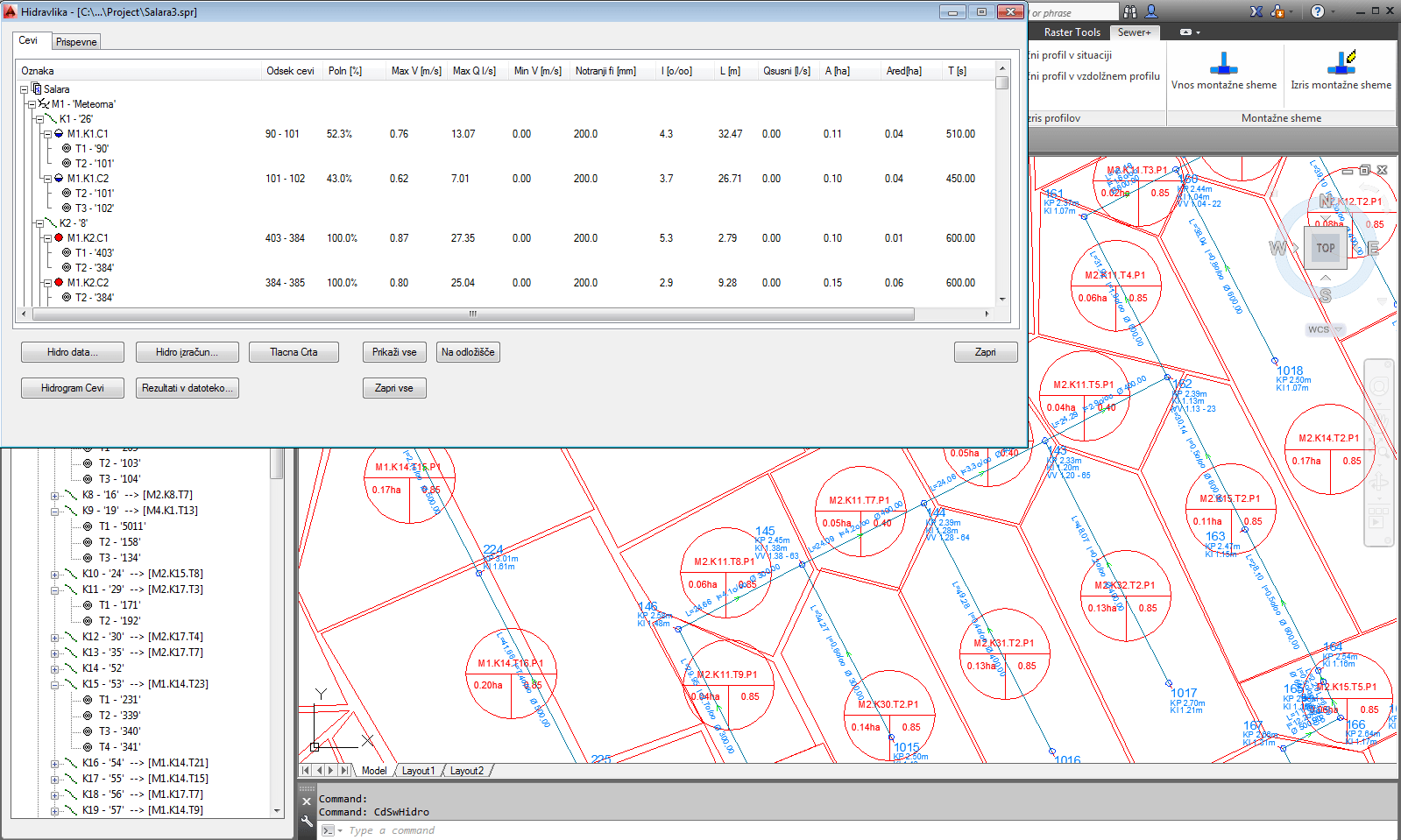

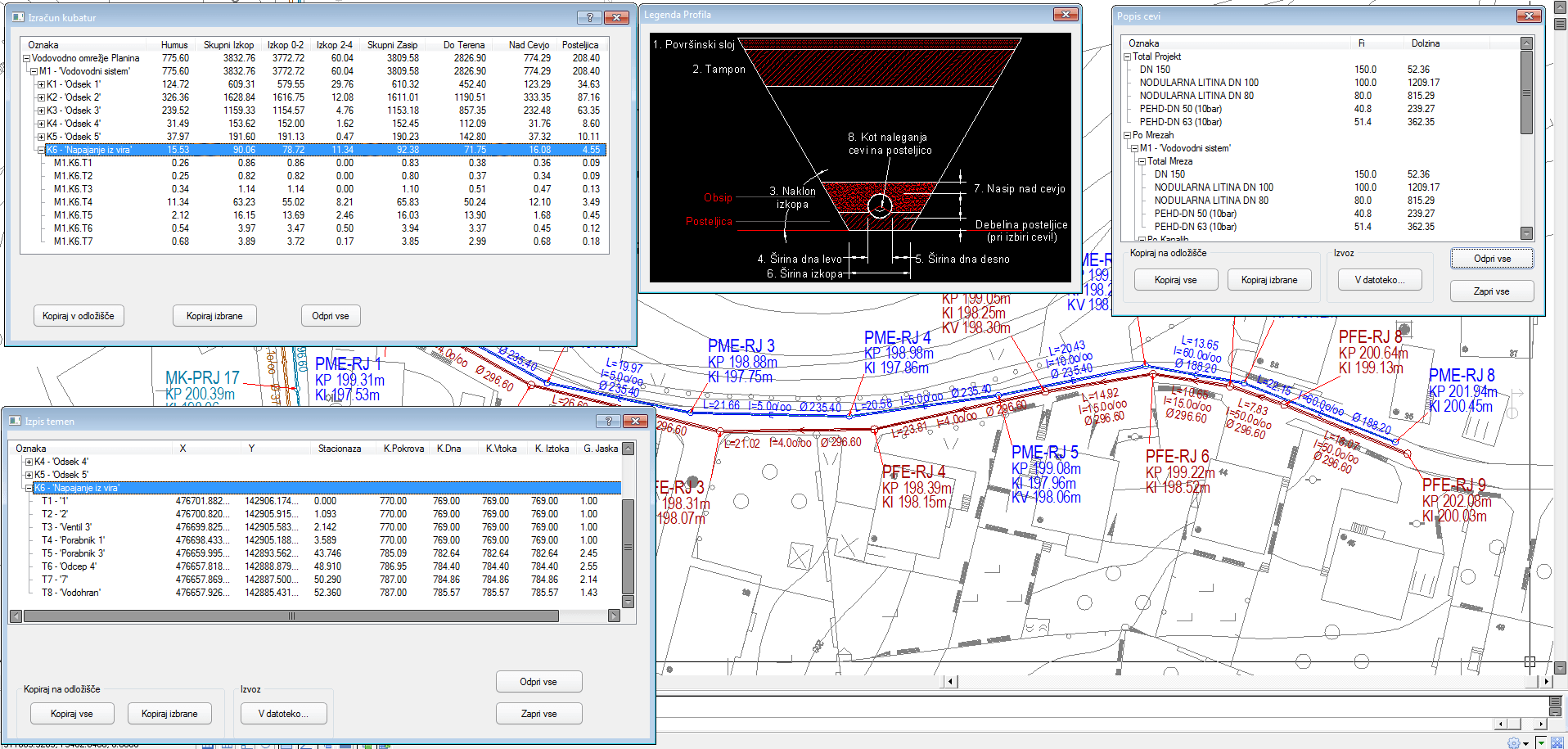

Besides CAD drawings, the designers have a complete array of reports at their hands - hydraulic calculation results, nodes coordinates, manhole elevations, depths, pipe dimensions and lenghts, cut and fill reports, pipework details part lists. All the reports can be exported to Excel or Word.

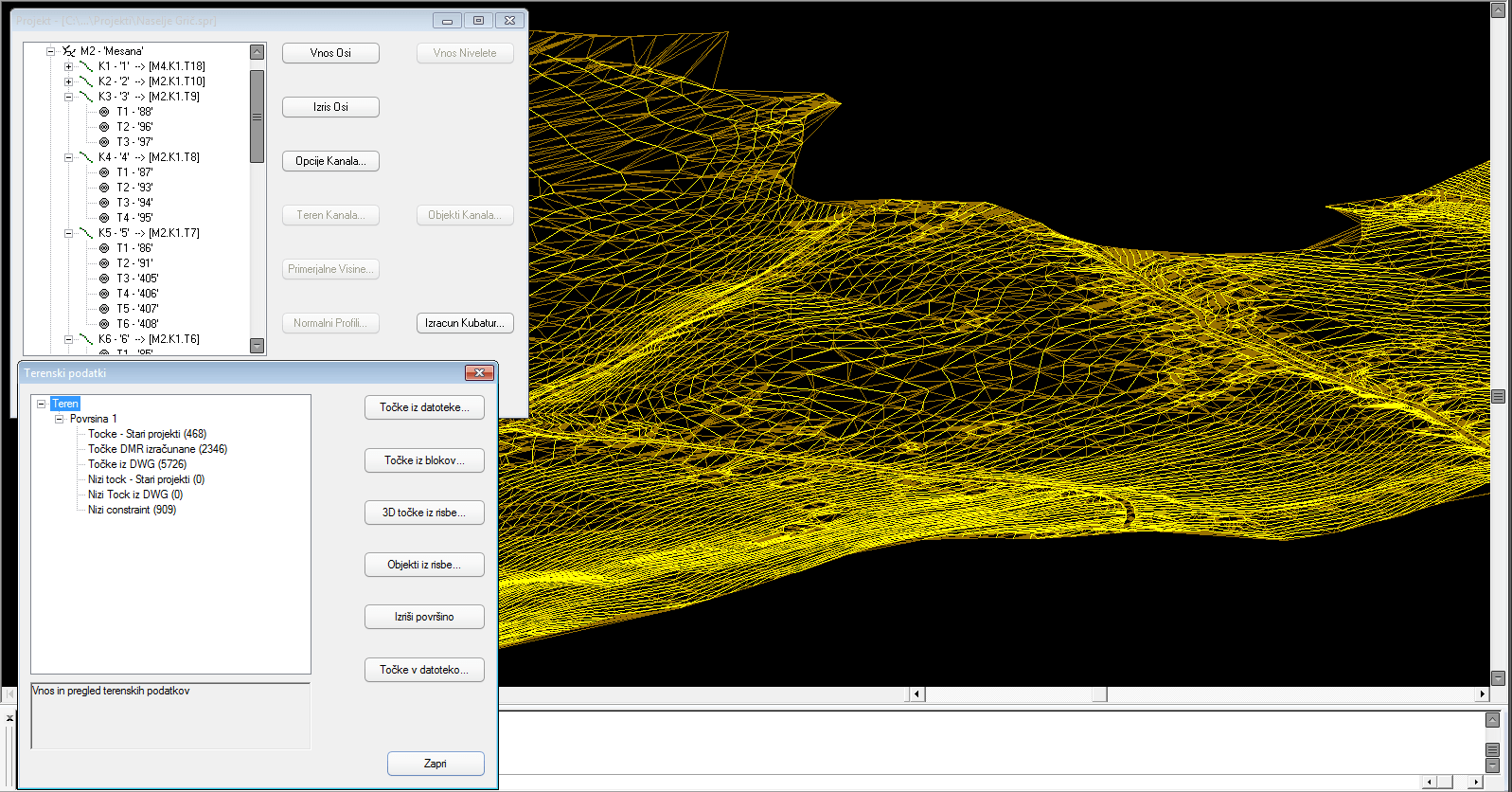

Terrain data for the DTM can be collected from 3D CAD elements, CAD blocks with elevation attributes or TXT files. AutoCAD Civil 3D users can also use Civil 3D Surfaces as their terrain model.
Using terrain data: terrain profiles of pipelines can be read as points read from DTM or by terrain points projection on pipeline axis.
Adding terrain points: by manual elevation entry or by interpolation from existing points.

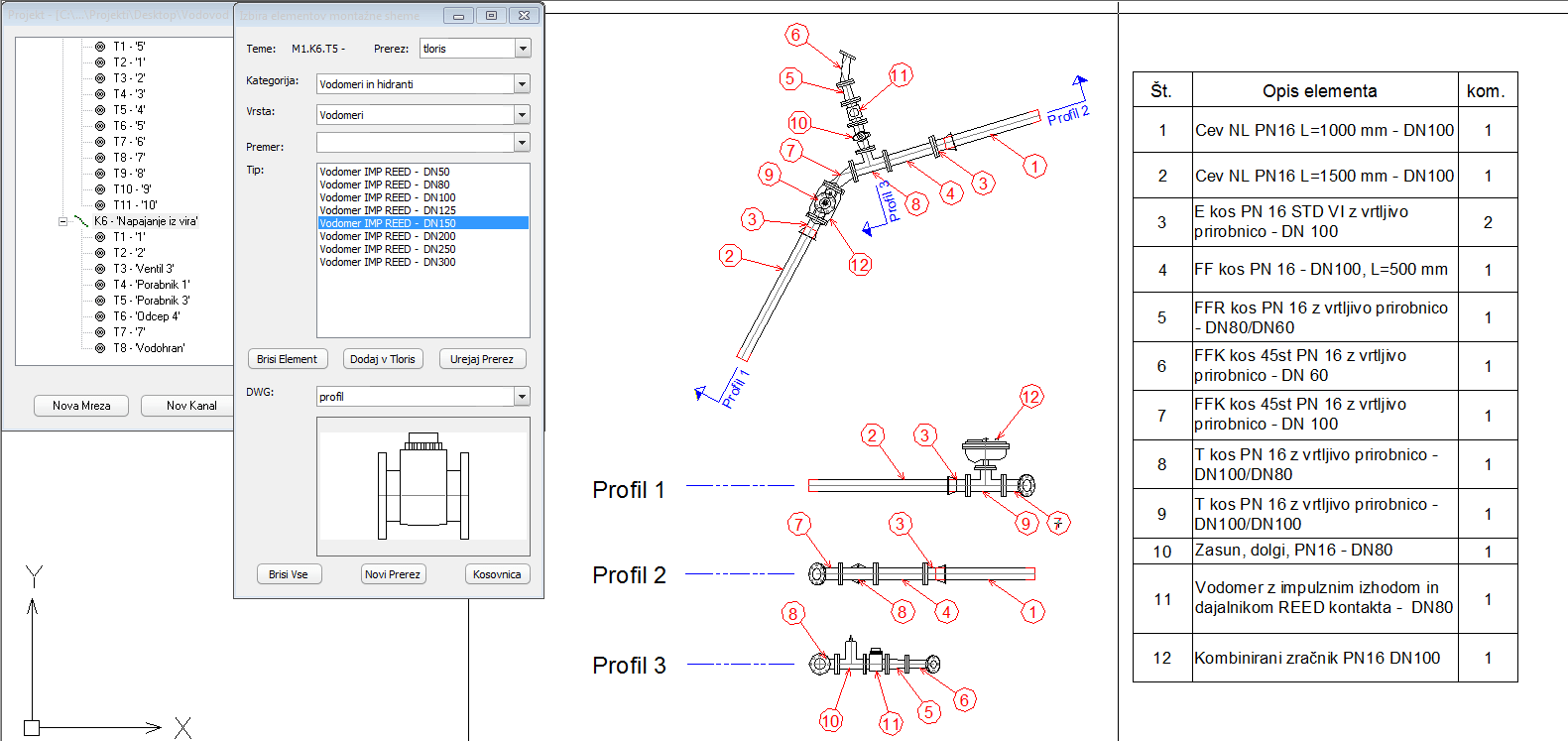

Pipework details can be created for every node in system, in plan view and also in any additional section made for particular detail. Sewer+ includes an elaborate library of pipework elements that can be used particularly for drinking water systems.
Parts list can be created for each particular pipework detail.
